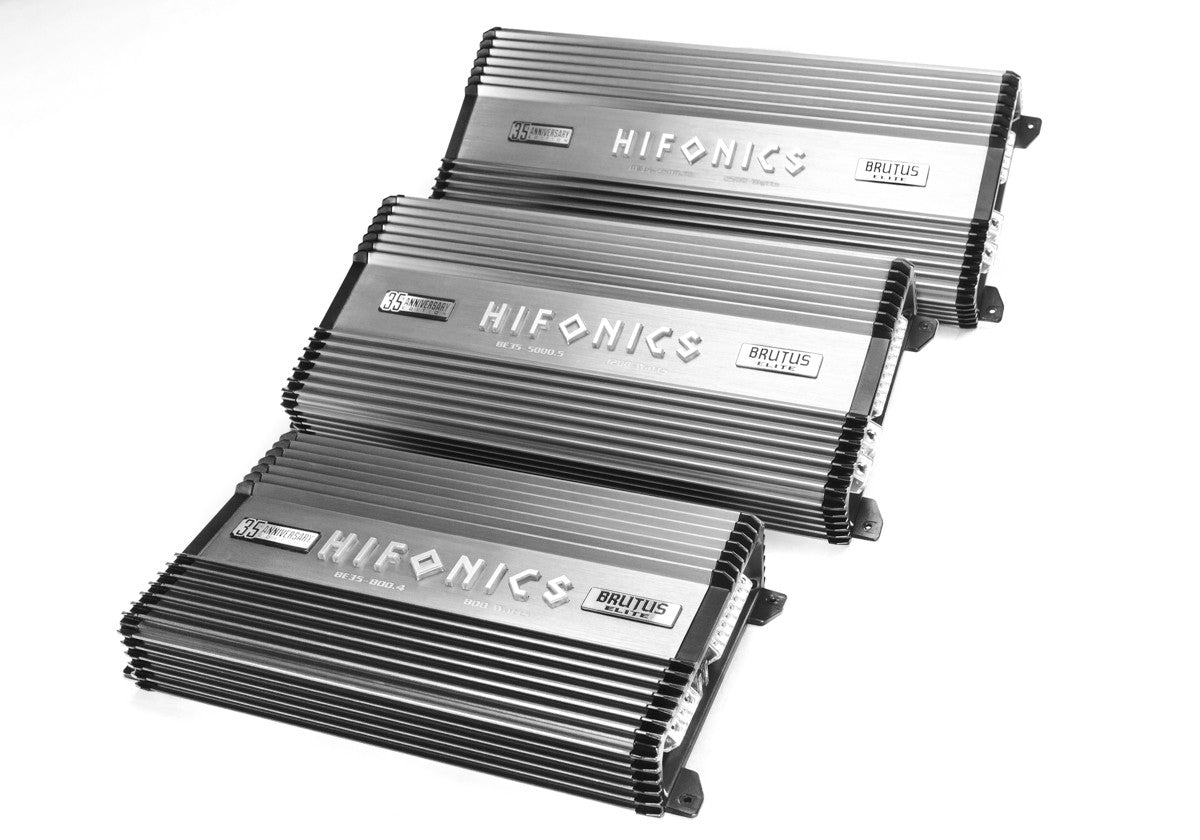

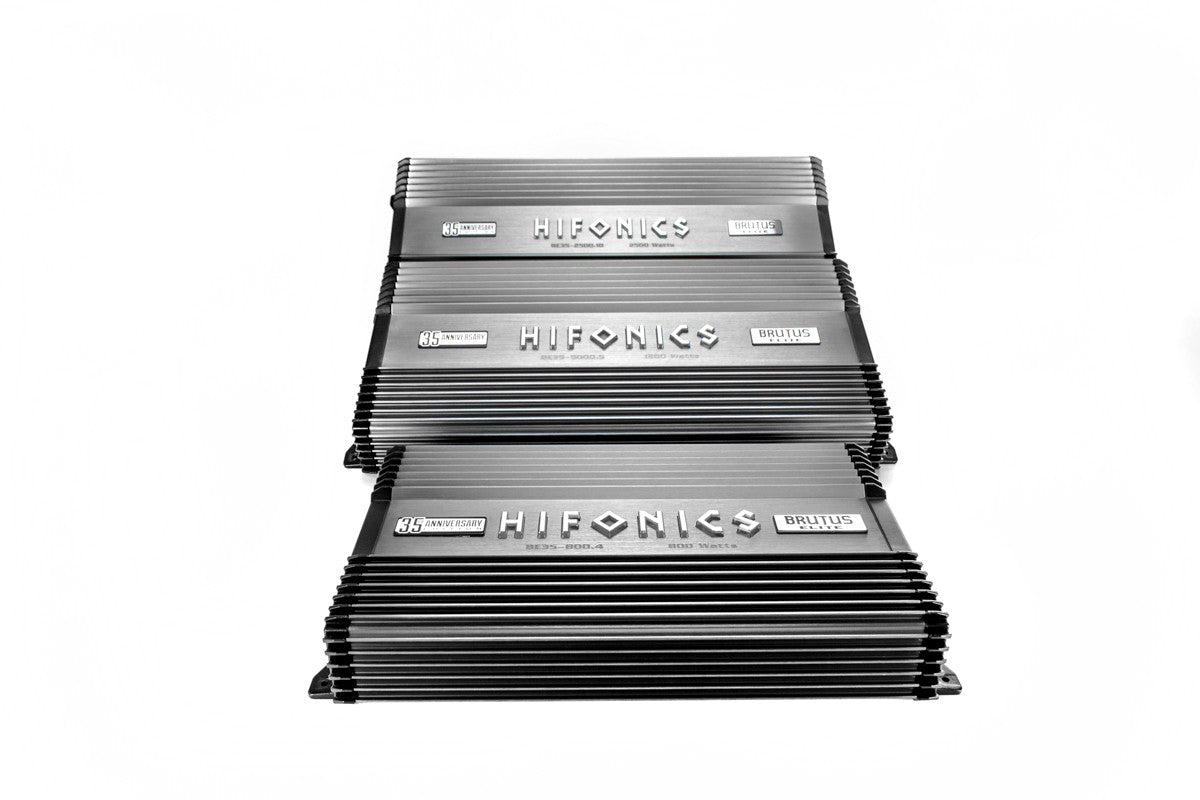

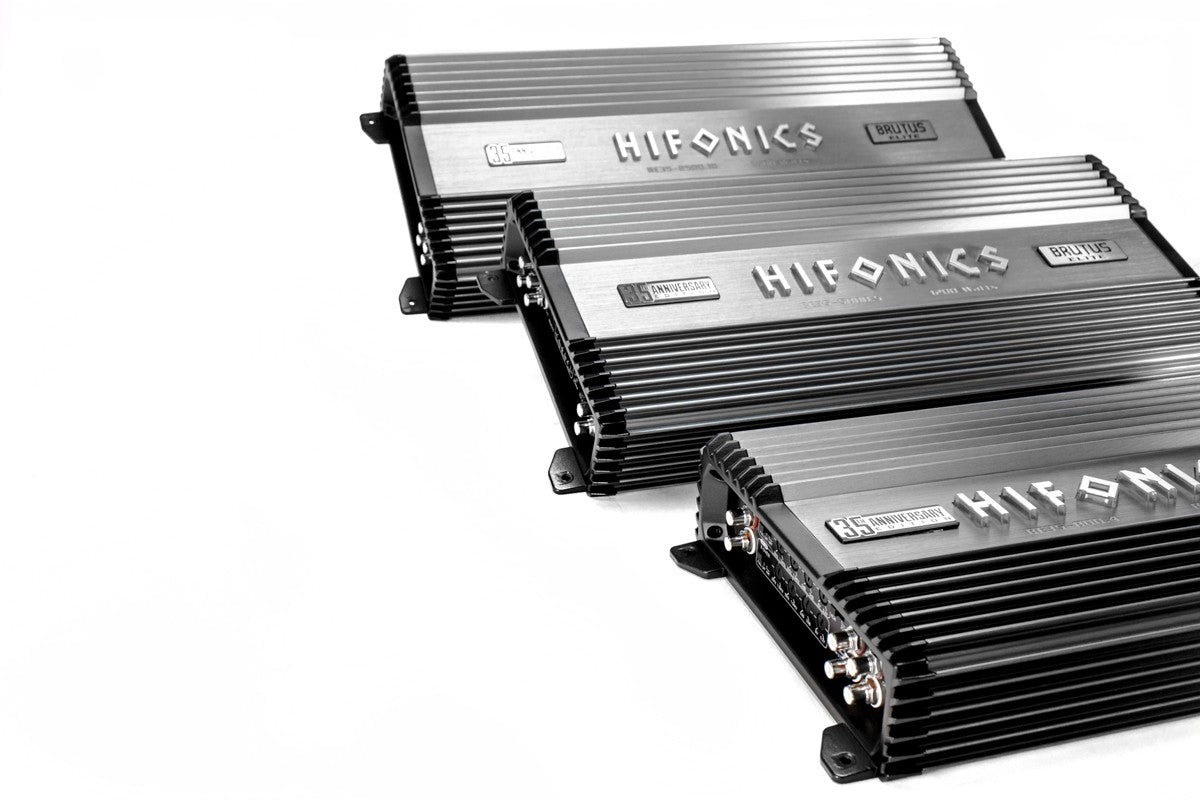

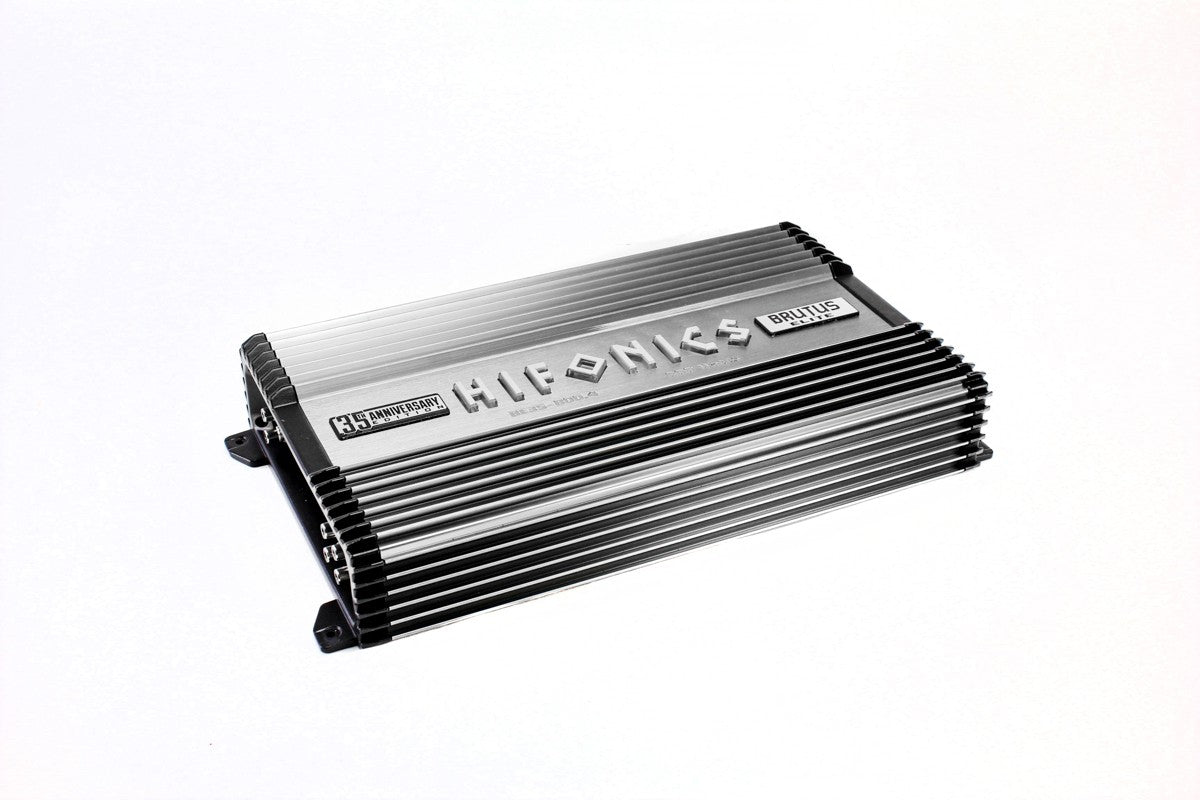

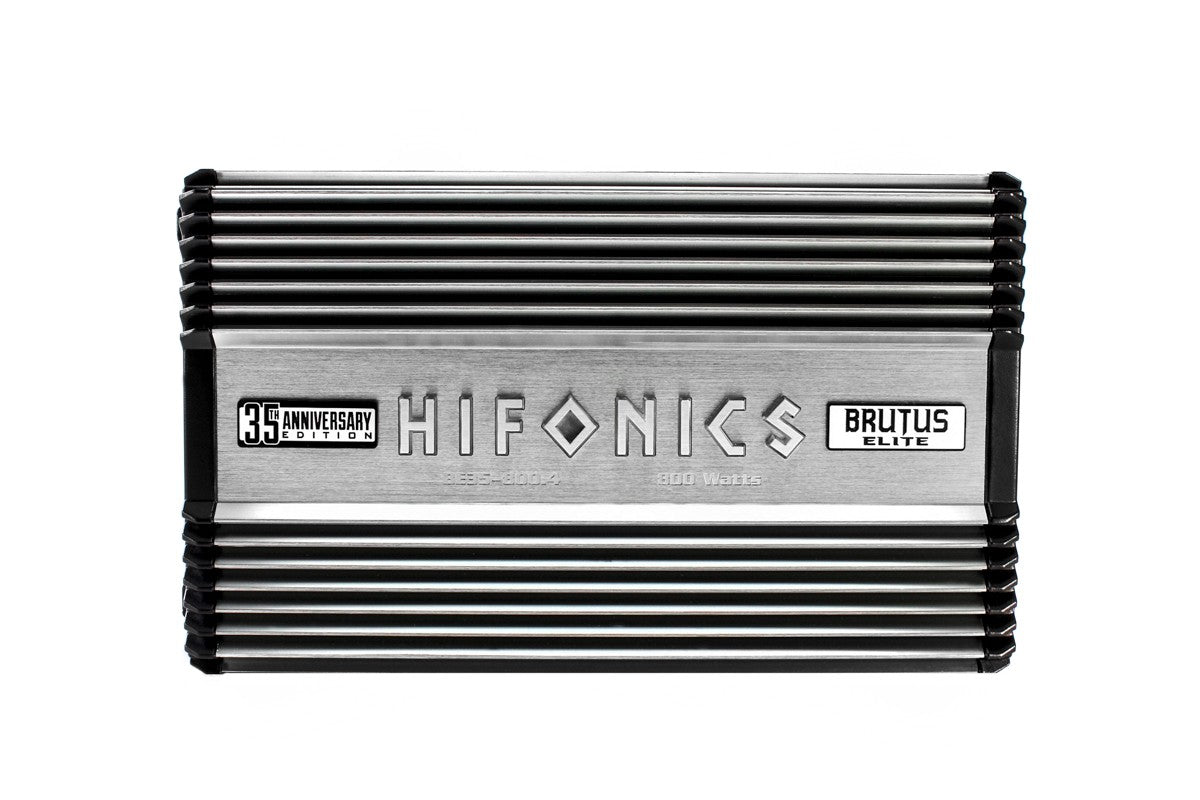

BE35 800.4 BRUTUS ELITE AMPLIFIER
Hifonics 35th Anniversary 4 x 200 Super A/B Class™ Brutus Elite four channel car audio amplifier with electronic crossovers.
POWER @ 2-OHMS 4 x 200
POWER @ 4-OHMS 4 x 100
MONO BRIDGED @ 4-OHMS 2 x 400
Now available!
Specification
CLASS
- Super A/B Class™
VARIABLE VOLTAGE
- 0.2V - 6V
SIGNAL TO NOISE
- >85dB
FREQUENCY RESPONSE
- 20-35kHz
CROSSOVER TYPE
- Electronic
HIGH PASS CROSSOVER: 12DB PER OCTAVE
- 10Hz - 1.5KHz
LOW PASS CROSSOVER: 12DB PER OCTAVE
- 30Hz -500Hz
CROSSOVER FREQUENCY RANGE: CH1 & CH2
- N/A
CROSSOVER FREQUENCY RANGE: CH3 & CH4
- N/A
TONE CONTROL
- Bass EQ
BASS BOOST
- 0~9dB@45Hz
SUBSONIC FILTER
- N/A
PHASE SHIFT
- N/A
POWER @ 1-OHM
- N/A
POWER @ 2-OHMS
- 4 x 200
POWER @ 4-OHMS
- 4 x 100
MONO BRIDGED @ 2-OHMS
- N/A
MONO BRIDGED @ 4-OHMS
- 2 x 400
TOTAL CHANNELS
- 4
AUDIO INPUTS
- Yes
AUDIO OUTPUTS
- No
POWER TERMINAL: 12V/GND
- 4ga
SPEAKER TERMINAL WIRE GAUGE
- 12g
Features
-
PRE-AMP CIRCUITRY: Low Noise PreAmplifier
Low voltage signal from the source unit comes into the amplifier pre-amplifier circuit with minimal distortion -
INPUTS: Tiffany Style RCA Connectors
Audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection -
HI LEVEL INPUTS:
N/A -
OPERATION MODE: Four Channel, Full Range, Bridgeable
Flexible installation allows this amplifier to run in four channel or bridged mono mode -

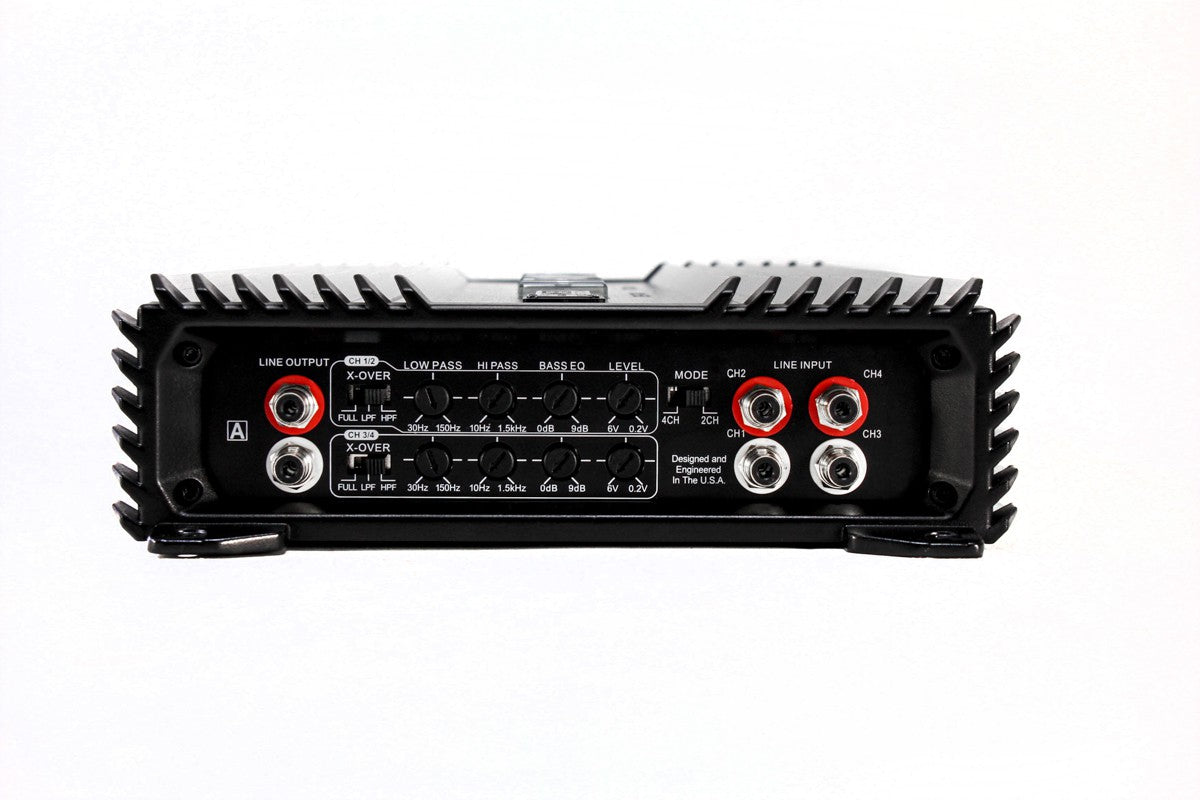

CROSSOVER / SIGNAL SHAPING: Accu-Cross
Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies -
EQUALIZER: Electronic
Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier -
CLASS / TOPOLOGY: Super A/B Class™
Developed over three decades of engineering to deliver the highest level of sound quality and power efficiency. At very high listening levels. Hifonics Super A/B Class results in lower distortion, higher current efficiencies and less heat than conventional amplifier designs. -
OUTPUT DEVICES TECHNOLOGY: Ultra-Fi™ MOSFET
The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion -
HEAT SINK: Aluminum
Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled -
POWER SUPPLY: Twin turbo
The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices -
STRAPPING:
N/A -
BASS REMOTE:
N/A -
OUTPUT CONNECTIONS: Nickel-Plated
High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant -

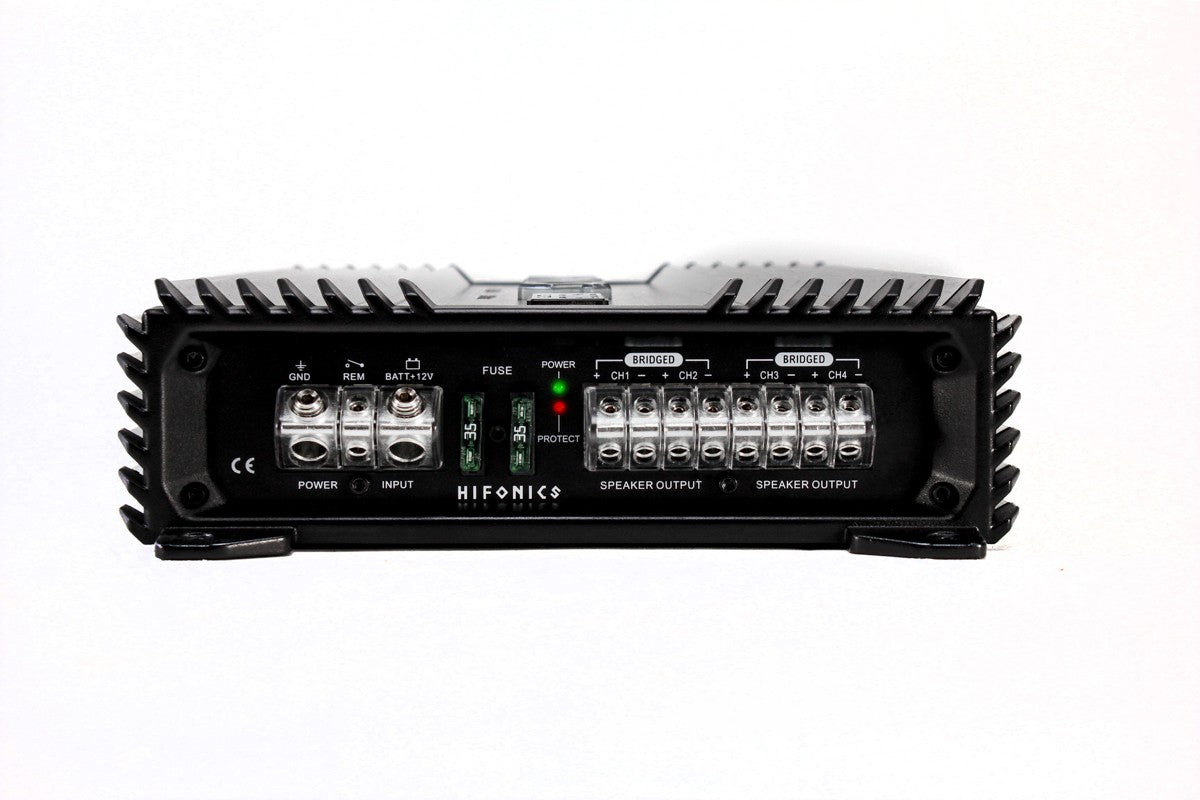

CONNECTIONS TYPE: Illuminated, Molded and Angled
Secure connection for all Power, Ground and Speaker connections. Angled for ease of access during installation. -
SIGNAL PASS THROUGH: Yes
One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables -
DIAGNOSTICS: 4-Way System Protection Circuitry
Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel -
MARINIZED / WATERPROOF:
N/A -

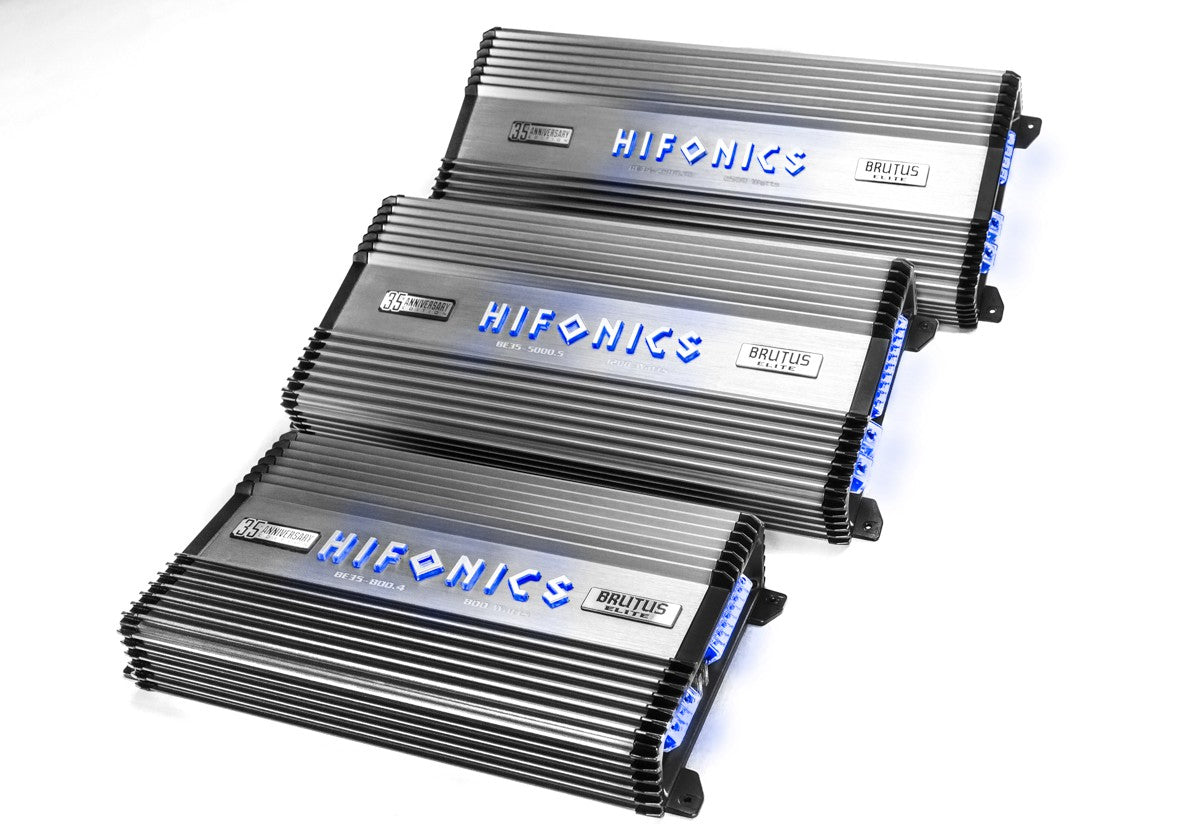

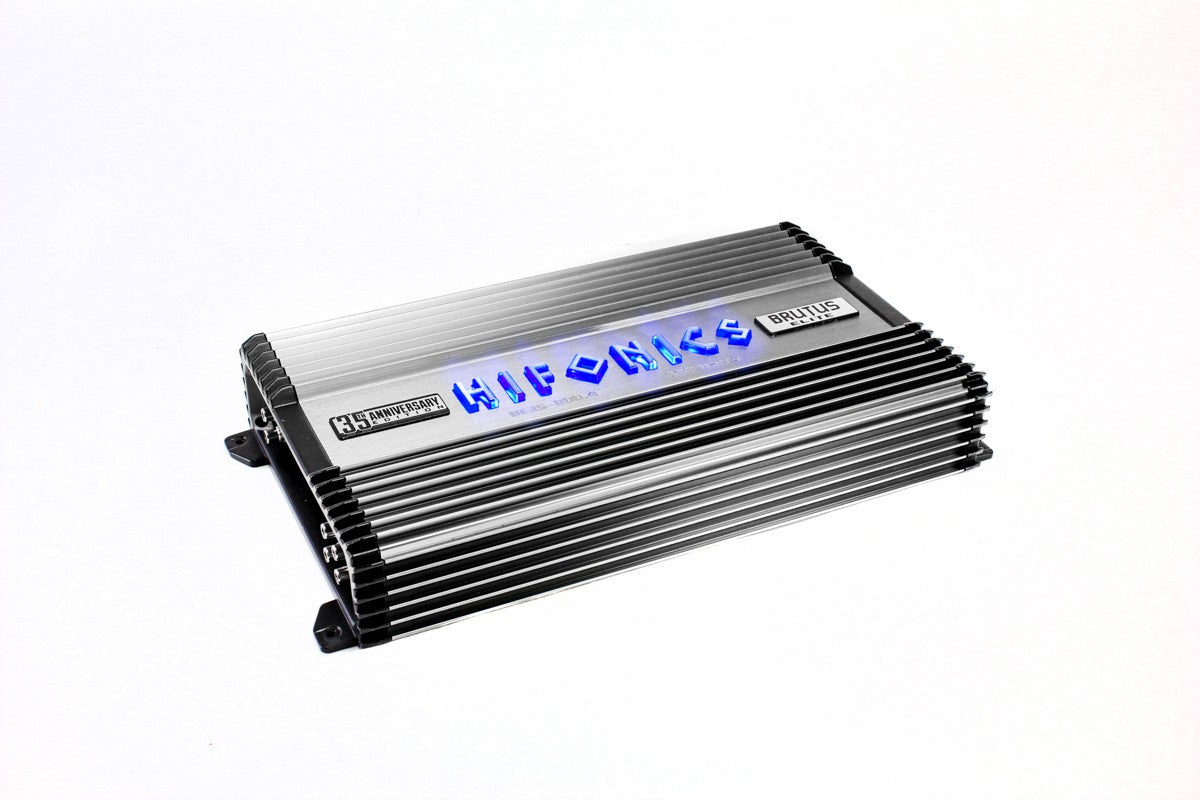

ILLUMINATION: Yes
Hifonics logo the molded and angled output connectors
